Motorized Projector lift, CM50/100/150

Different from the commonly-available scissors structure, CM series motorized projector lift is using a single-armed structure made from aluminum alloy, which can avoid the front- to-back and side-to-side swing problem. The anti-broken structure ensures the security of use. This series including three models CM50 CM100 CM150, customer could choose the proper lift according to the different ceilings. Besides these standard size, we could produce the lift as client’s customized requirement within 2 meters travel distance. The weight capacity is 40 kg. Patent No.CN205560196U

Ultra thin design, thickness is only 129mm, single-armed structure is made from aluminum alloy, which can avoid the front- to-back and side-to-side swing problem.

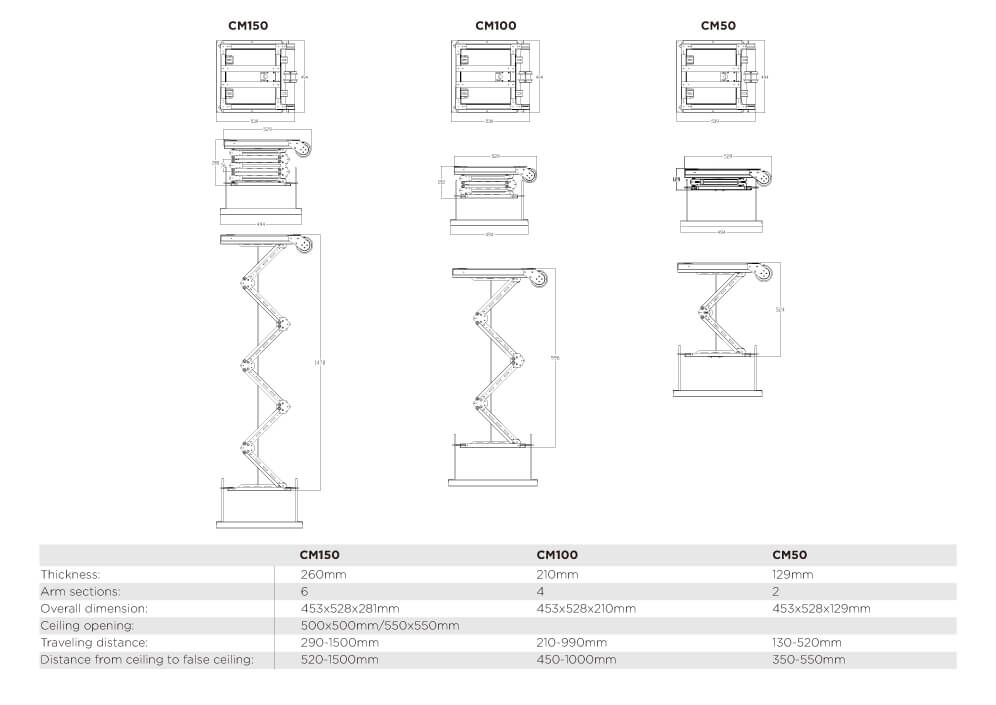

Product Specification

Arm sections:246
Overall dimension:453x528x129mm453x528x210mm453x528x281mm
Ceiling opening:500x500mm/550x550mm500x500mm/550x550mm500x500mm/550x550mm
Traveling distance:130-520mm210-990mm290-1500mm
Distance from ceiling to false ceiling:350-550mm450-1000mm520-1500mm

Deluxe Tensioned

Motorized Projector Lift CM50 150
